Chokes
PMPE develops and manufactures customized chokes and inductors for all applications
Storage Choke : Direct current flows through the choke, with delta-shaped alternating current superposed. The frequency of this alternating current can be twice the switching frequency, depending on the topology of the Switched Mode Power Supply.
Resonant Circuit Choke : An alternating current of same frequency as that of the switching frequency flows in these inductors.
Pulse Choke : High current flows in a short time through the choke, depending upon the duty cycle of the operating frequency. For rest of the time the choke is in de-energized condition.
PFC Choke : In these chokes the current flowing is up to twice the frequency of mains supply in-put. In addition a high-frequency alternating current is super imposed on it.
Non Linear Chokes : The inductance curve of these chokes depends upon the amount of current flowing through it. These are stepped air gap or transducer choke.

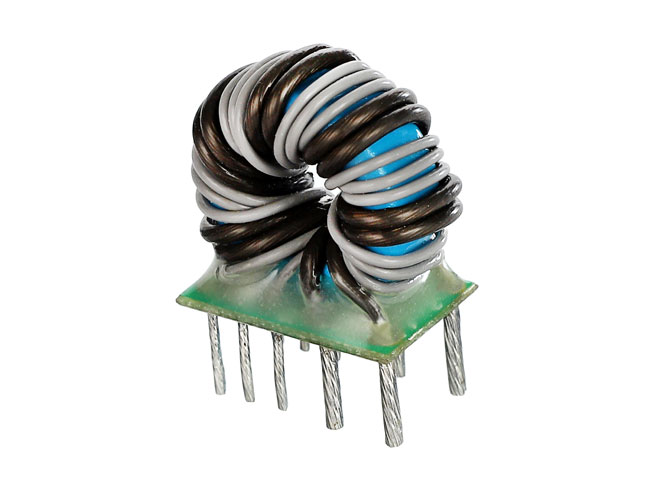

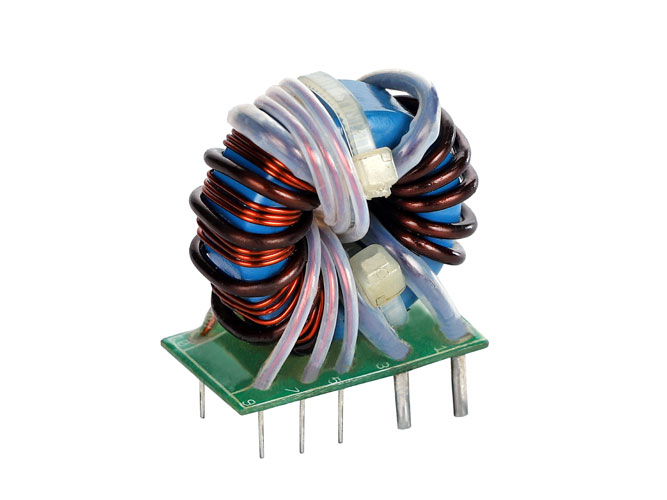

Chokes for EMI/EMC Application : These chokes are used at the input of a SMPS to filter common and differential mode noise generated due to switching circuits of the power supply.
Tuned Circuit Inductors: Tuned Circuit Inductors chokes are used in a series or parallel tuned circuit to select a frequency for further processing
The core materials normally used are:
- - Soft Ferrite
- - Iron Powder
- - Carbonyl Iron Powder
- - MPP
- - Koo Mµ, MSS
- - Silicon Iron
- - Nickel Iron
- - Amorphous Cores
- - Nanocrystalline Cores
Designs:
- - Bobbin core windings

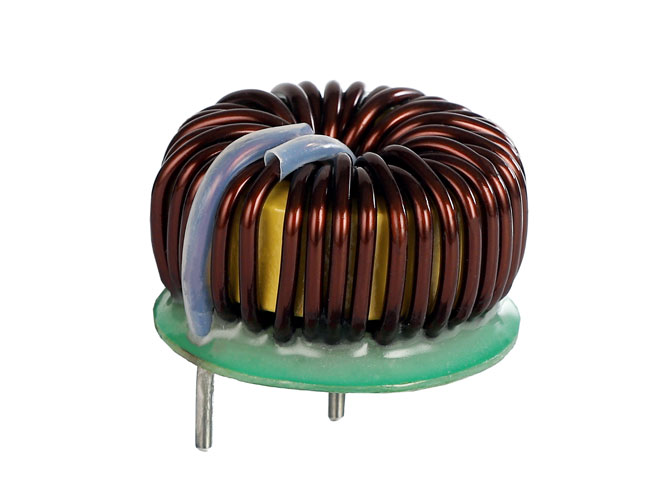

- - Toroidal core winding
- - Lead frame winding(Planner cores)
- - Air Coils
- - Drum Core windings

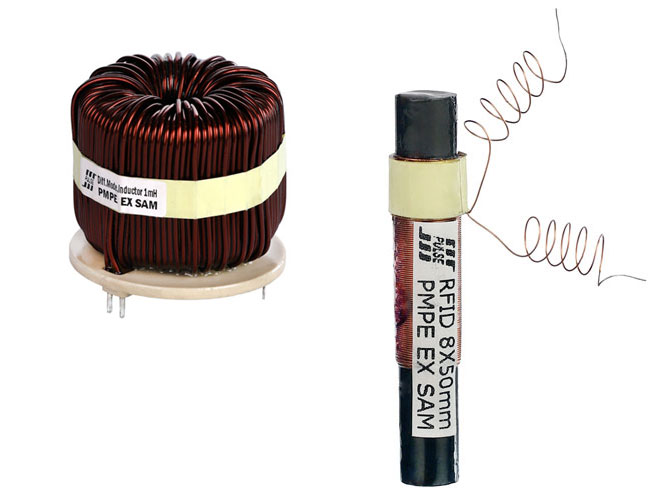

- - Ferrite Rod windings
- - Ferrite bead windings
- - Edge Winding
Conductor Used:
- - Solid Copper wires with round and rectangular shapes
- - Litz Wires Copper ( In house facility to manufacture)
- - Copper Foil Strips
